Ultimate control and stability for cinematic shooting

Description

Control, stability, and reliability in the ultimate tripod package for film style shooting.

The 2575E includes OConnor’s patented sinusoidal counterbalance system for true balance at any point in the tilt range, and stepless, ultra-smooth pan & tilt fluid drag for the fastest whip pans and accurate long lens framing.

The Cine HD tripod is a heavy duty aluminum tripod for large payloads that must be supported in a safe and reliable manner.

There are currently two 2575E system packages available:

2575E Head & Cine Mitchell Tripod with Floor Spreader (C2575E-CINEM-F)

In this package the 2575E fluid head includes a Euro style quick release plate as well as pan handle with extension, while the Cine Mitchell Tripod comes with spreader to complete the setup.

2575E Head & Cine 150mm Bowl Tripod with Floor Spreader (C2575E-CINE150-F)

In this package the 2575E fluid head includes a Euro style quick release plate as well as pan handle with extension, while the Cine 150mm Bowl Tripod comes with spreader to complete the setup.

Head Package

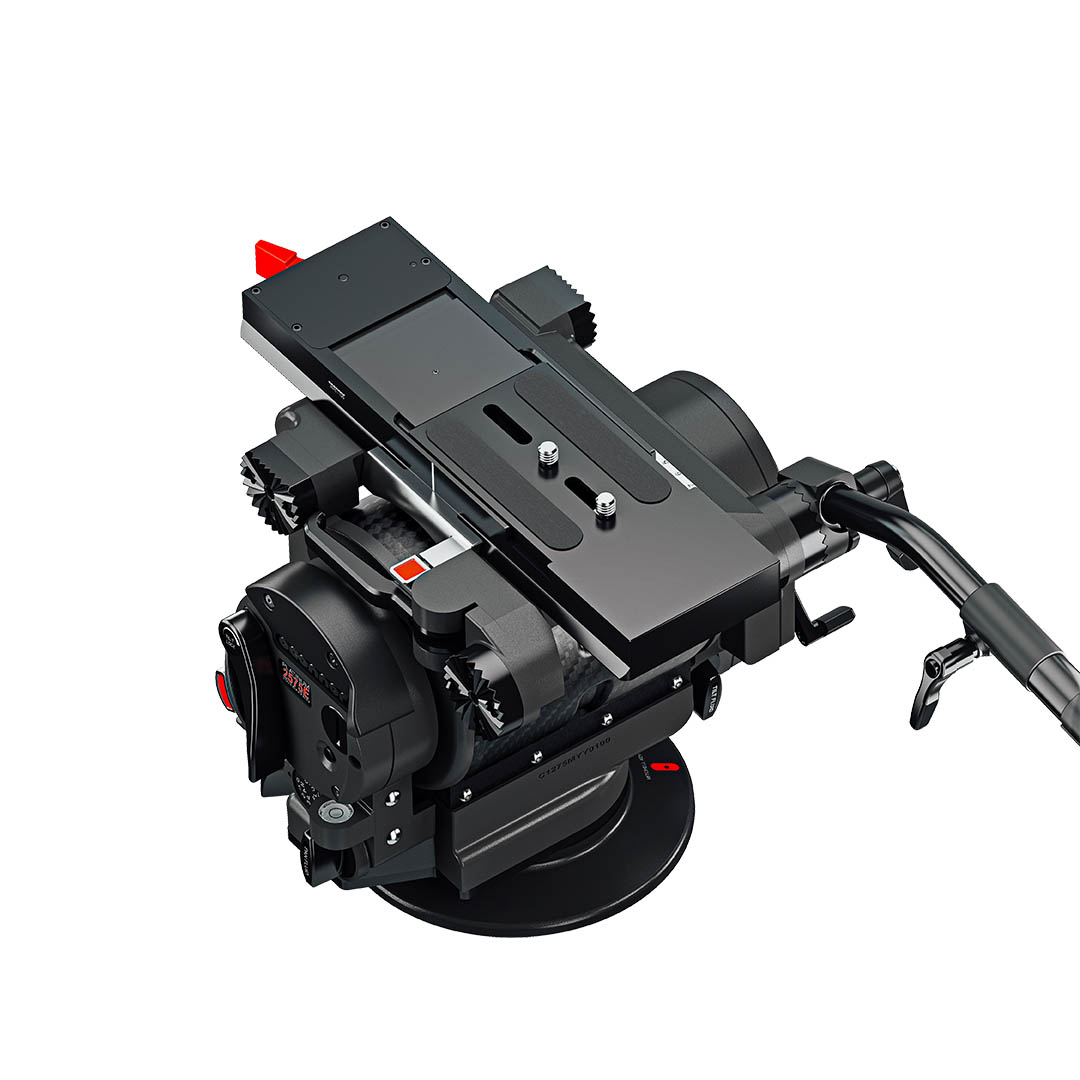

Model 2575E Fluid Head Package (C1275-0001)
Capacity
@ 4 in. (102 mm)
@ 6 in. (152 mm)
@ 8 in. (203 mm)
133 lbs. (60.5 kg)
105 lbs. (47.7 kg)
87 lbs. (39.5 kg)

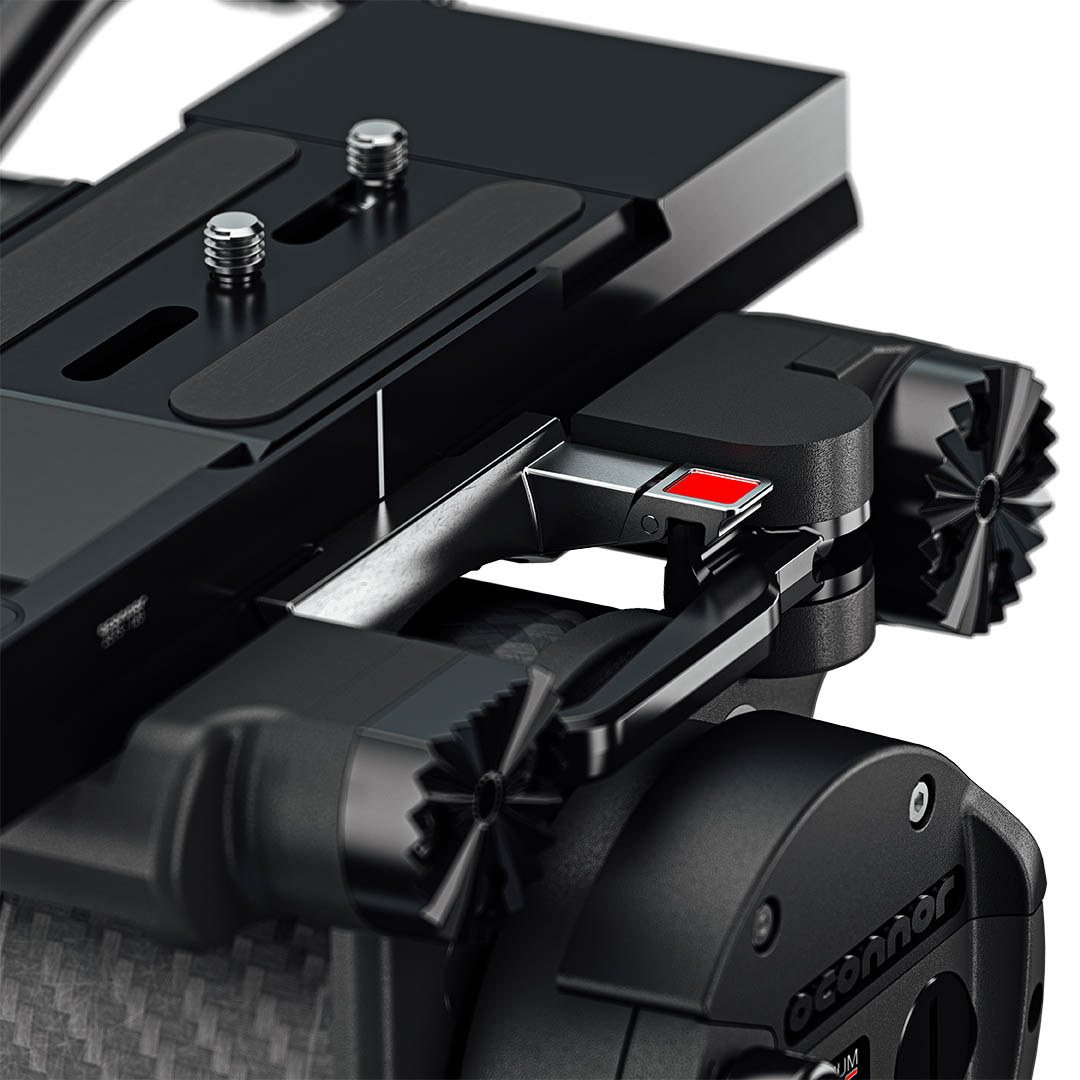

Platform options Quick release with 120mm Euro Plate
Handle options 30˚ (1x included with extension)
Bases Mitchell, 150 mm (both included with tiedown)
Tilt +90° / -90°
Height 8.4 in. (21.3 cm)
Width 12.4 in. (31.5 cm)
Depth 8.6 in. (21.8 cm)
Weight 30 lb. (13.6 kg)

Tripod

Material Aluminium
Capacity 309 lbs. (140 kg)
Weight with spreader 29.3 lbs. (13.3 kg)
Height 33.6 in – 69.2 in. (85.3 cm – 175.8 cm)
Top casting Mitchell (C2575E-CINEM-F) / 150 mm bowl (C2575E-CINE150-F)
Collapsed length 40.6 in. (103 cm)
Collapsed width 11.1 in. (28.2 cm)

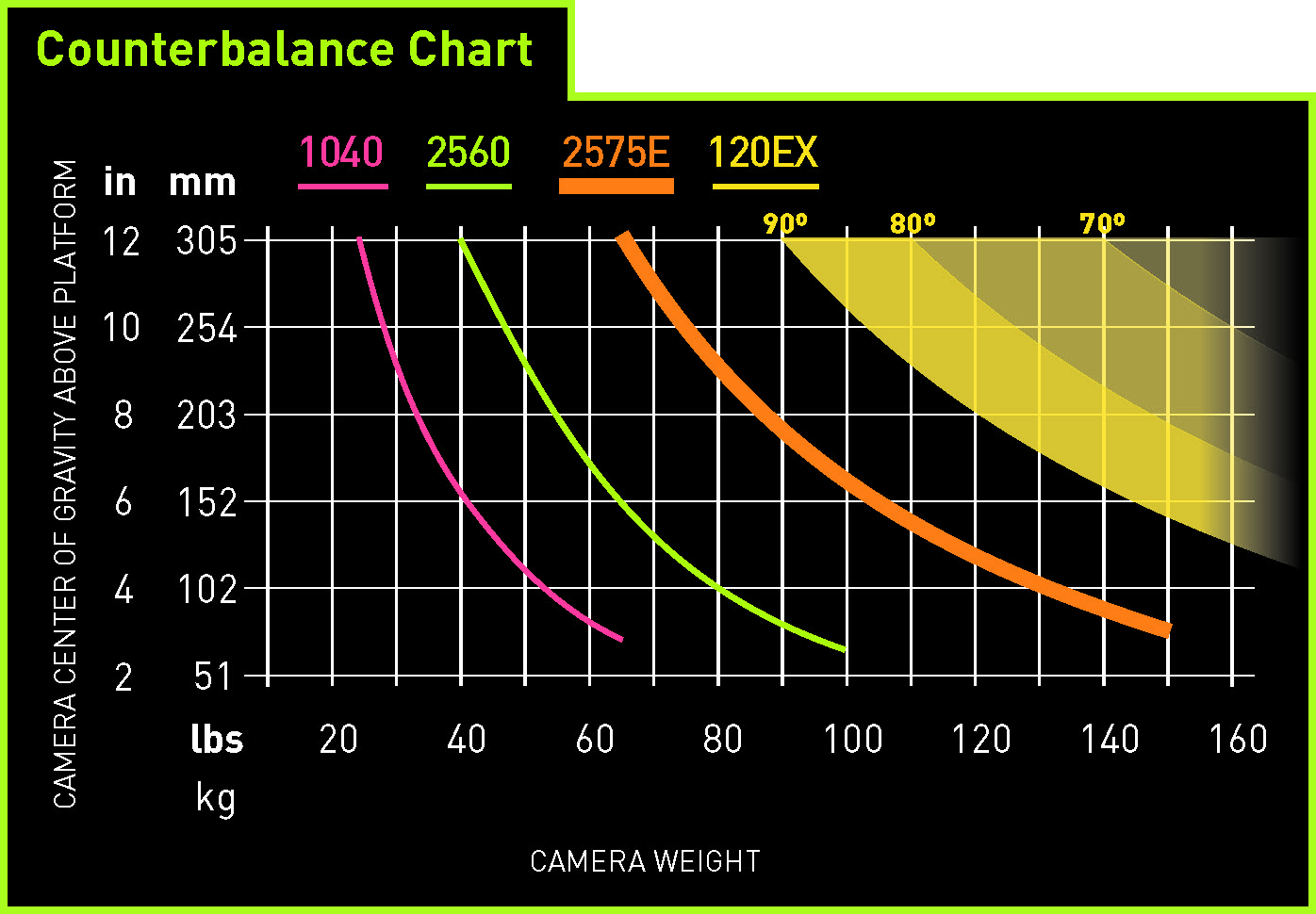

Ultimate 2575E counterbalance
2575E Head & Cine Mitchell Tripod with Floor Spreader C2575E-CINEM-F
System includes:
Ultimate 2575E Fluid head Package C1275-0001
Cine Mitchell Tripod C1221-0001
Spreader C1222-0015



2575E Head & Cine 150mm Bowl Tripod with Floor Spreader C2575E-CINE150-F
System includes:
Ultimate 2575E Fluid head Package C1275-0001
Cine 150mm Bowl Tripod C1221-0003
Spreader C1222-0015
